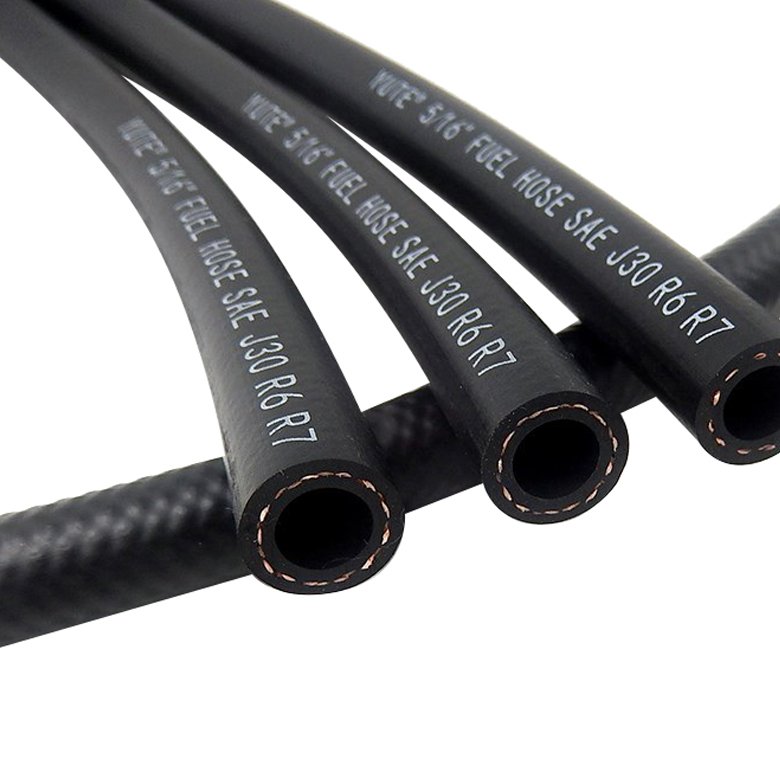

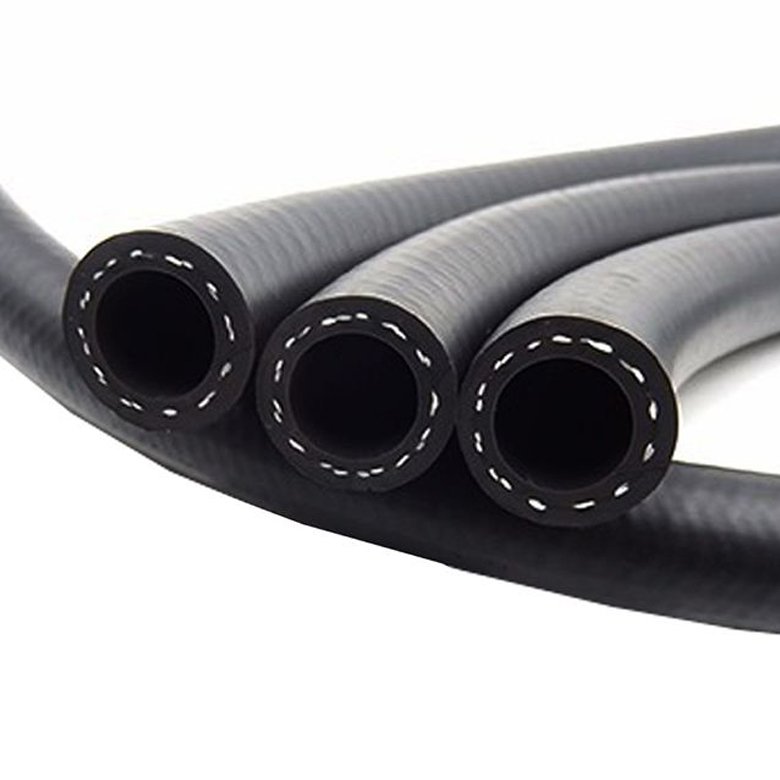

Rubber fuel hose SAEJ30R6

Fule Hose

Oil -,fuel-resistant Synthetic Rubber Compound

Reinforcement

High Tensile Braided Fiber

Cover

Suitable Oil- ,ozone-, And Heat-resistant Synthetic Rubber Compound

Working Temperature

-40c~+125"c.

Some Related Reference Standard for you:
We have full series of SAE and EN standards, including:
Wire braided: SAE100 R1AT/DIN EN 1SN, SAE100 R2AT/DIN EN 2SN, SAE100 R16, SAE100 R17
Wire spiral: SAE100 R9,SAE100 R12,SAE100 R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE100 R3, SAE100 R6, SAE100 R5
Thermoplastic: SAE100 R7, SAE100 R8
PTFE: SAE100 R14

Categories: ,

Product Description

wholesale rubber fuel hose suppliers

Reinforcement: High tensile braided fiber (AR)
Cover: suitable oil-, ozone-, and heat-resistant synthetic rubber compound

Reinforcement: One textile braid.

Working Temperature:-40 ºC~+135ºC
Standard: SAE J 30R6

Application:

Push-on hose for low-pressure lines, return lines and drain lines. Used in the fuel systems or in the crankcase of internal combustion engines in mobile(truck, bus,off-highway, vehicles), stationary and marine applications.

Mineral oils, vegetable and rape seed oils, glycol and polyglycol-based oils, synthetic ester-based oils, oils in aqueous emulsion, water, diesel fuel, and gasoline.

Tube:

Fuel and oil-resistant synthetic rubber compound.

Reinforcement:

One textile braid.

Cover:

Environment-resistant synthetic rubber.

Temp. Range:

-40°C to 100.

rubber fuel hose Product Parameter

HOSE  I.D R.O.D O.D MAX W.P MIN B.P MIN B.R W.T
MODEL DN dash inch mm mm bar psi bar psi mm Kg/m
TB J30 6 6 -4 1/4″ 12,7 35 510 140 2030 76 0.13
TB J30 8 8 -5 5/16″ 14,3 35 510 140 2030 76 0.16
TB J30 10 10 -6 3/8″ 15,8 35 510 140 2030 76 0.18
TB J30 12 12 -8 1/2″ 19,6 25 360 100 1450 127 0.24
TB J30 16 16 -10 5/8″ 23,6 25 360 100 1450 150 0.32
TB J30 19 19 -12 3/4″ 28,3 21 300 84 1210 180 0.47
TB J30 25 25 -16 1″ 33,9 14 200 56 810 240 0.53



Our Service

Provide OEM Manufacturing
Accept sample order
We will reply to your inquiry in 12 hours.
After shipping, we will track the products for you d, until you get the products.
Could provide samples for testing. When you got the goods, test them, and give me feedback. If you have any questions about the problem, contact us, and we will offer the solve way for you.

rubber fuel hose Product Application

Apply to convey gasoline. diesel and lubricating oil or the vapors emission in either the fuel system or in the crankcase of internal combustion engines.
