1 inch Silicone Hose

Product

Auto silicone coupler

Material

Silicone rubber + Fabric reinforcement

Temperature

-60 ° C ~ 260 ° C

OEM/ODM

Available

Silicone Product Characteristics

Silicone rubber is a new type of polymer elastic material, which has excellent high-temperature resistance (180-260 ° C) and low-temperature resistance (-40-60 ° C), good physiological stability, excellent resilience, and small permanent deformation (200 ° C48 hours not more than 50%), breakdown voltage (20-25 VK/MM), ozone resistance, UV resistance. Radiation resistance and other characteristics, special silicone rubber with oil resistance

Product Description

TOP 1-inch Silicone Hose Manufacturers

We are Silicone Hose Specialists, we offer unrivaled quality and service. Built to the highest specifications,

with strict quality controls our automotive hoses are extremely reliable.

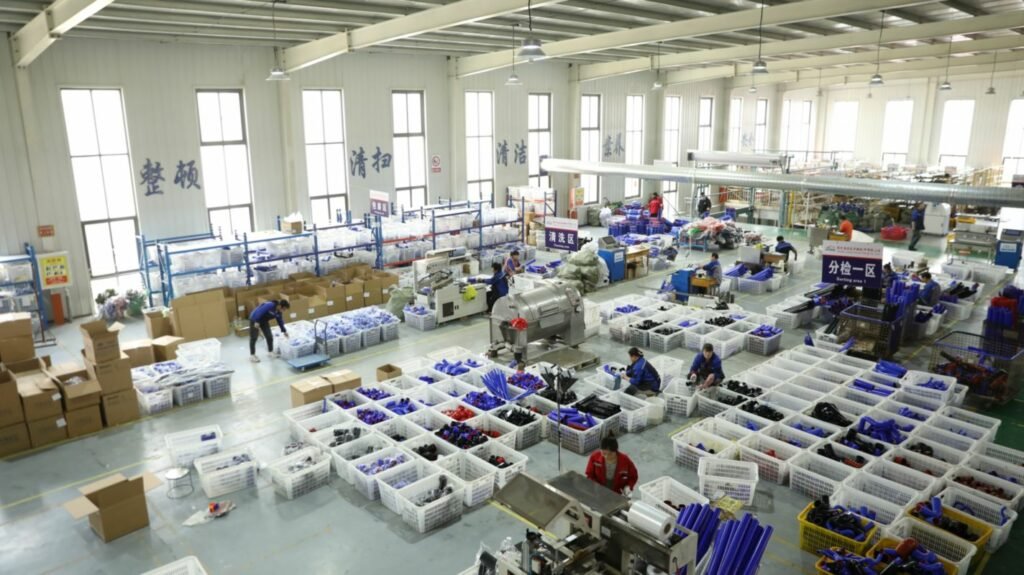

Company Profile

Hebei Kinglin Rubber & Plastic Tech Co., Ltd
is one of the leading factories of rubber products in the local market, Our silicone hoses, rubber hose, and rubber seal are widely used in modification vehicles, commercial cars, trucks, military vehicles, industry, and agricultural machines.
High Gloss, High-Quality Performance Silicone Hoses Manufactured, Our products adhere to the strict product quality standards of ISO 9001 and IATF 16949.

Silicone Hose Application

If it’s an automotive, marine, or industrial piece of equipment that requires silicon hoses, we can help!

Our hoses are suitable for cooling systems, charge air systems, and induction systems. With its temperature range stability, flexibility, longevity, and thermal and electrical insulation properties, silicon polymers are a modern miracle of engineering material science.

1-inch Silicone Hose Product Parameter

(1)the range of continuous use temperature: -60 ° C ~ 280 ° C;

(2)soft, arc-resistant, corona-resistant;

(3) can be customized according to customer requirements of various specifications.

(4)harmless non-toxic tasteless

(5)high pressure, environmental protection

(6)Size: caliber, according to the specifications custom

(7)Hardness: 70 ± 5, tensile strength: ≥6.5.

Standard color:
Black, red, blue, white, gray, green, transparent (other colors can be produced as required)

Silicone Product Specification

Product Auto silicone coupler
Material Silicone rubber + Fabric reinforcement
Reinforcement Polyester cloth or Aramid cloth
Temperature -60 ° C ~ 260 ° C
Colors transparent, white, black, red, yellow, green (can also be required to produce)
Pressure 0.3Mpa~1.2Mpa
Shape Straight hose
45/90/135/180-degree elbow hose
hump hose
reducer hose
silicone hose kits
L/Y/S/Z shape or any customized shape
Inner Diameter 6mm ~ 135mm or according to the customer’s requirement
OEM/ODM Available
Antibiosis and anti-corrosion property good
Hardness 35~80 shore A

1 inch silicone hose Silicone Product Model

S.NO P/N ID1 ID1 LENGTH LENGTH WALL PLY W.P
mm Inch mm inch mm
1 C6 6 1/4 76 3 4 3 0.8mpa(116Psi)
2 C6.5 6.5 1/4 76 3 4 3 0.8Mpa (116Psi)
3 C8 8 1/3 76 3 4 3 0.75Mpa (108Psi)
4 C9.5 9.5 3/8 76 3 4 3 0.75Mpa (108Psi)
5 C10 10 3/8 76 3 4 3 0.7Mpa (101Psi)
6 C11 11 3/7 76 3 4 3 0.7Mpa (101Psi)
7 C12 12 1/2 76 3 4 3 0.7Mpa (101Psi)
8 C13 13 1/2 76 3 4 3 0.7Mpa (101Psi)
9 C14 14 9/16 76 3 4 3 0.7Mpa (101Psi)
10 C16 16 5/8 76 3 4 3 0.7Mpa (101Psi)
11 C18 18 11/16 76 3 4 3 0.7Mpa (101Psi)
12 C19 19 3/4 76 3 4 3 0.7Mpa (101Psi)
and more and more and more and more more more



1 inch id silicone hose Production Process

1. SHAPING
First, Install the correct mold, Put the prepared material into the mold, according to the number of layers required by the customer, and make the same cycles.

2. WRAPPING
The winding process involves wrapping tape around each hose to ensure that the hose is fully covered. This wrapping gives the hose a shiny finish.

3. VULCANISED
All of our silicone tubes are placed in the vulcanization box for high-temperature vulcanization, vulcanization is completed after cooling, and the silicone tube will be removed from the mold
4. TRIMMING
Each hose end is affixed to a lathe, at high speed using a sharp blade each hose is then trimmed to give a sharp clean finish.
After cutting can see clearly how many inner layers.

5. Detection
We also have 3D detection tools, it is more precise. Every hose is handcrafted, checked, and rejected if there is a defect or incorrect build of any kind detected by our quality control team.

6. THE FINISHED PRODUCT
High Gloss, High-Quality Performance Silicone Hoses Manufactured, Our products adhere to the strict product quality standards of ISO 9001 and IATF 16949.
We are Silicone Hose Specialists, we offer unrivaled quality and service. Built to the highest specifications, with strict quality controls our automotive hoses are extremely reliable.

FAQ

Q: Are You a Trading Company Or Factory?
A: We Are Factory and Trading Company Located in Hebei Province, the North of China.

Q: What’s the Delivery Time?
A: Usually, It’s 15 days to 20 days. Please Confirm With us before Ordering.

Q: Can you produce customized goods?
A: Yes, the size, diameter, and length can be produced as per the client’s requirements.

Q: Can you print words on products as per the client’s requirement?
A: Yes, make the label according to your exact requirement

Q: Do you accept OEM?
A: Yes, OEM is available.

Q: How can you guarantee the quality or any warranty?
A: If have any quality problems during use, all the products can be returned or according to the consumer’s requests.

Any More Questions Please Feel Free to Contact Us. Thank You.
