V-band clamps have many advantages such as faster installation and removal, no leakage, high pressure resistance, etc. This guide will take you through their advantages, comparisons, professional tips and installation in detail.
A V-band clamp is a type of clamp used to create a strong seal between pipe connections. It consists of a V-shaped metal band and flanges. When you tighten the clamp’s nut, it squeezes the V-angle flanges together, applying even pressure all the way around the connection. This design eliminates the need for bolts or gaskets, which makes it great for high-vibration, high-heat applications like exhaust and turbo systems.
Let’s dig into how V-band clamps work and how to choose, install, etc.
How does the V-band work?

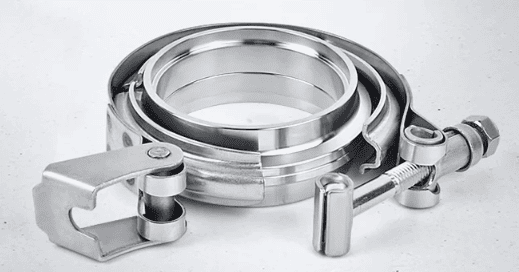

The V-band clamp system is made up of three main parts: two flanges (welded to the ends of the pipes) and the clamp. The flanges are shaped like a cone with a V in the middle. When you tighten the clamp nut, it pulls the flanges together. The V-angle causes the clamp to wedge together, creating even pressure all the way around and making a tight seal that won’t leak.
Because of the way it wedges together, it can handle a little bit of misalignment and vibration, which makes it perfect for automotive applications where things get hot and stressful.
Are V-band clamps good for exhaust?
You bet! V-band clamps are popular in performance and race exhaust systems because they:
Make it easy to take things apart and put them back together
Don’t require gaskets or sealant
Stay tight and in place even under high heat and vibration
Make a good, tight connection that looks clean
V-band systems are more reliable over time, especially in V-band exhaust and turbo setups, than band clamps or flanges.
What is a V-band turbo?
In a V-band turbo setup, the V-band clamp is used to connect the turbine housing to the downpipe or mid-pipe. This lets you swap turbos faster and eliminates problems like exhaust leaks at the turbo flange. It’s especially handy in tight engine bays where it’s hard to get a wrench on the bolts.
Bonus: V-band turbos usually let you rotate the housing 360°, which makes it easier to clock the housing.
How to install a V-band clamp

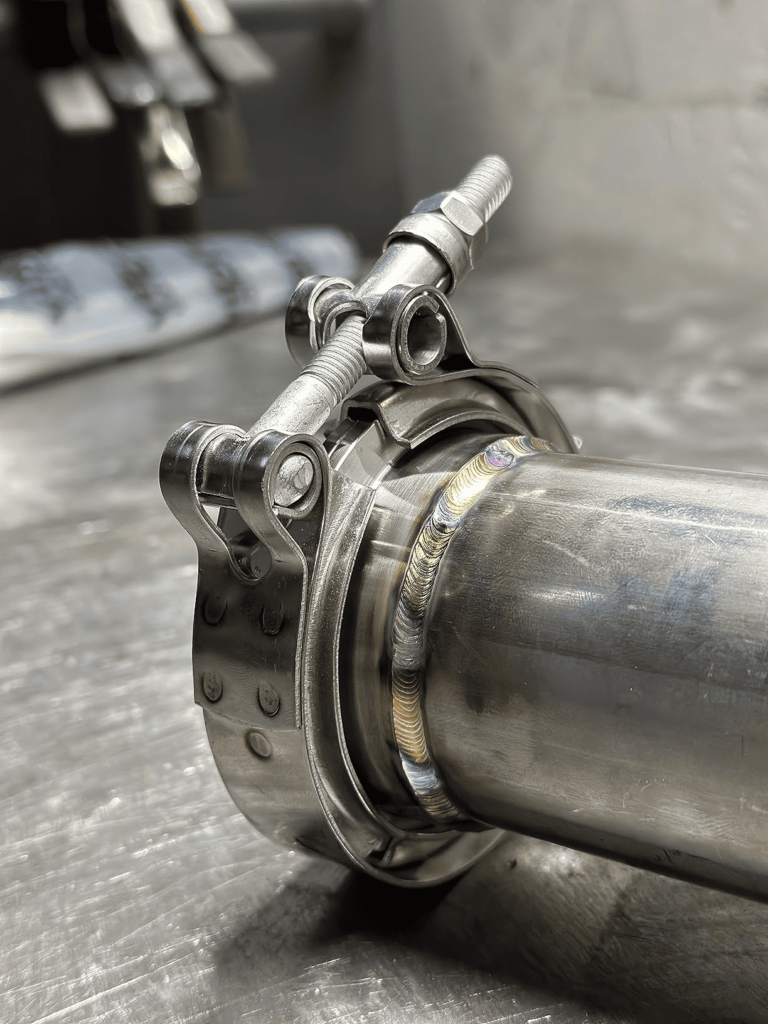

Weld both flanges to the pipe ends, making sure they are perfectly aligned.
Put anti-seize on the clamp nut, so it doesn’t gall.
Put the flanges together and put the clamp in.
Tighten the clamp nut evenly. Use a torque wrench to make sure it’s tight enough.
Check for leaks with smoke or soapy water.
Pros and cons of using V-band clamps
Pros
- Doesn’t leak under high pressure
- Easy to put together/take apart
- No gaskets needed
- Can rotate to get it lined up perfectly
Cons
- More expensive to start
- You have to weld it
- Can be overtightened and ruined
- If you don’t put it in right, it can come loose
Common V-band clamp mistakes and how to avoid them
- Overtightening: Strips threads or warps the clamp
- Undertightening: Causes leaks and loosening from vibration
- Misalignment of flanges: Prevents proper sealing and causes stress fractures
- No anti-seize: Makes removal a nightmare
Avoid these problems by taking your time and using a torque wrench.
