Braided Elbow Silicone Hose

Product

Elbow silicone hose

Material

Silicone rubber + Fabric reinforcement

Temperature

-60 ° C ~ 260 ° C

OEM/ODM

Available

Braided elbow silicone hose is made from silicone, which provides excellent resistance to high temperatures, ozone, and UV rays. It also resists electrochemical degradation. This silicone hose meets SAE standard J20.(Contact me for more sizes)

Product Description

Braided Elbow Silicone Hose

Elbow Silicone Hose Long life, high performance, and reliability under high pressure, 90-degree elbow silicone hose、Silicone 135 Degree Reducer Elbow intercooler Joiner Radiator Turbo Hose is flexible and works great under high temperatures.

Woven thermoplastic and pure silicon creates a perfect blend of strength and durability. We increase the number of plays and wall thickness of our 135-degree hoses as the diameter increases, This way our silicone tube can withstand more pressure.

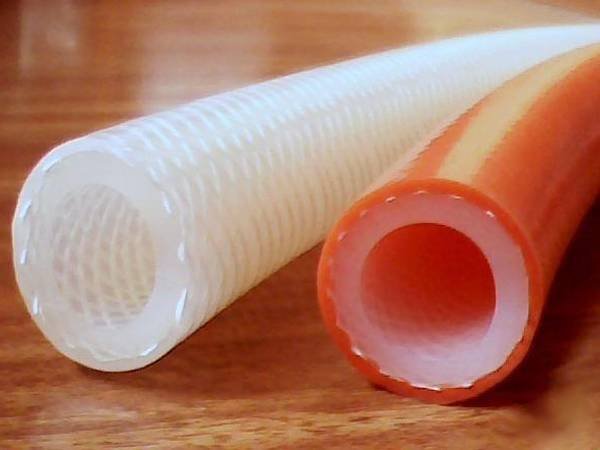

Kinglin Braided Elbow Silicone Hose is a type of silicone hose that is reinforced with a braided polyester layer, providing additional strength and durability. The hose is designed with an elbow shape, making it ideal for applications that require a bend or turn in the hose.

This product is insulating and non-conductive
This product resists damage from chemical corrosion.
This product has Excellent ozone and UV resistance. (Please contact me for a quotation and free samples)

Braided Elbow Silicone Hose

Automotive Silicone Hose Product Specification

  • Wall Thickness: 5.8mm, 4-ply
  • Size Tolerance: +/-0.5mm
  • Standard Length: 76mm (3″)
  • Operational Temperature: -76°F (-60°C ) to +500°F (+260°C)
  • Operational Pressure: 0.3 to 0.9MPa
  • Bursting Pressure: 2MPa
  • UV water, ozone, and oxygen damage resistance
  • ISO 9001 and TF16949certified manufacturing

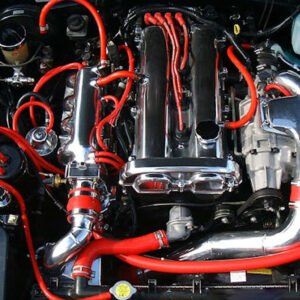

braided elbow silicone hose Product Application

Silicone Straight Reducer Turbo Radiator Hose Coupler is universal in the application, including:

  • Racing cars cooling connector
  • Engine Cooling Hose
  • Intercooler Coupler Pipe
  • Commercial trucks
  • Agricultural and turbo vehicles

Braided Elbow Silicone Hose

braided elbow silicone hose Product Specification

Product elbow silicone hose
Material Silicone rubber + Fabric reinforcement
Reinforcement Polyester cloth or Aramid cloth
Temperature -60 ° C ~ 260 ° C
Colors transparent, white, black, red, yellow, green (can also be required to produce)
Pressure 0.3Mpa~1.2Mpa
Shape Straight hose
45/90/135/180-degree elbow hose
hump hose
reducer hose
silicone hose kits
L/Y/S/Z shape or any customized shape
Inner Diameter 6mm ~ 135mm according to the customer’s requirement
OEM/ODM Available
Antibiosis and anti-corrosion property good
Hardness 35~80 shore A



S.NO P/N ID1 ID1 LENGTH LENGTH WALL PLY W.P
mm Inch mm inch mm
1 E135-16/187P3 16 5/8 187X187 7 1/3 4 3 0.7Mpa (101Psi)
2 E135-19/187P3 19 3/4 187X187 7 1/3 4 3 0.7Mpa (101Psi)
3 E135-22/187P3 22 6/7 187X187 7 1/3 4 3 0.7Mpa (101Psi)
4 E135-25/187P3 25 1 187X187 7 1/3 4 3 0.7Mpa (101Psi)
5 E135-28/187P3 28 1 1/9 187X187 7 1/3 4 3 0.75Mpa (108Psi)
6 E135-30/187P3 30 1 1/6 187X187 7 1/3 4 3 0.75Mpa (108Psi)
7 E135-32/187P3 32 1 1/4 187X187 7 1/3 4 3 0.6Mpa (87Psi)
8 E135-35/187P3 35 1 3/8 187X187 7 1/3 4 3 0.6Mpa (87Psi)
9 E135-38/187P3 38 1 1/2 187X187 7 1/3 4 3 0.6Mpa (87Psi)
10 E135-41/187P3 41 1 3/5 187X187 7 1/3 4 3 0.65Mpa (94Psi)
11 E135-45/187P3 45 1 7/9 187X187 7 1/3 4 3 0.5Mpa (72Psi)
12 E135-48/187P4 48 1 8/9 187X187 7 1/3 5 4 0.5Mpa (72Psi)
13 E135-51/187P4 51 2 187X187 7 1/3 5 4 0.5Mpa (72Psi)
more more more more more more more more more more

Features of Kinglin Braided Elbow Silicone Hose

  1. High-temperature resistance: The hose can withstand high temperatures, making it suitable for applications that require high-temperature resistance.
  2. Reinforced with braided polyester layer: The braided polyester layer provides additional strength and durability to the hose.
  3. Elbow shape: The hose is designed with an elbow shape, making it ideal for applications that require a bend or turn in the hose.
  4. Non-toxic: The hose is made of non-toxic materials, making it safe for use in food and beverage and pharmaceutical industries.
  5. Easy to clean: The smooth inner surface of the hose makes it easy to clean and sterilize, reducing the risk of contamination.

Braided Elbow Silicone Hose
