Silicone Heater Hose

Standard

SAE J20 R3 Class A

Working Temperature

-60°C to 260 °C

Standard Color Option

Blue/Red/Black/Green/Yellow/Orange etc

Length

10/20/30/50m as customer’s requirement

Name: High Temp Reinforced Silicone Heater Hose
Layer Material: 1-5 Ply Reinforced Silicone
Inner:100% High-quality silicone Cover: silicone
Reinforcement: Polyester/Aramid Braid
High flexibility for versatile applications
High environmental resistance to weathering, coolant deterioration, and ozone
Suitable for emission hose applications
Polyester textile cord reinforcement for high durability

Product Description

TOP blue silicone heater hose factories

Auto heater silicone hose high-temperature resistance Electrochemical degradation resistance UV and ozone resistance
Ordinary silicone is not oil resistant, but fluorosilicone with its unique properties provides resistance to many fuels, oils, and solvents, including gasoline, Get wholesale price now.

Silicone rubber is noted for its water resistance. It has an extremely low degree of water absorption and its mechanical properties show minimal change, even after long periods of immersion

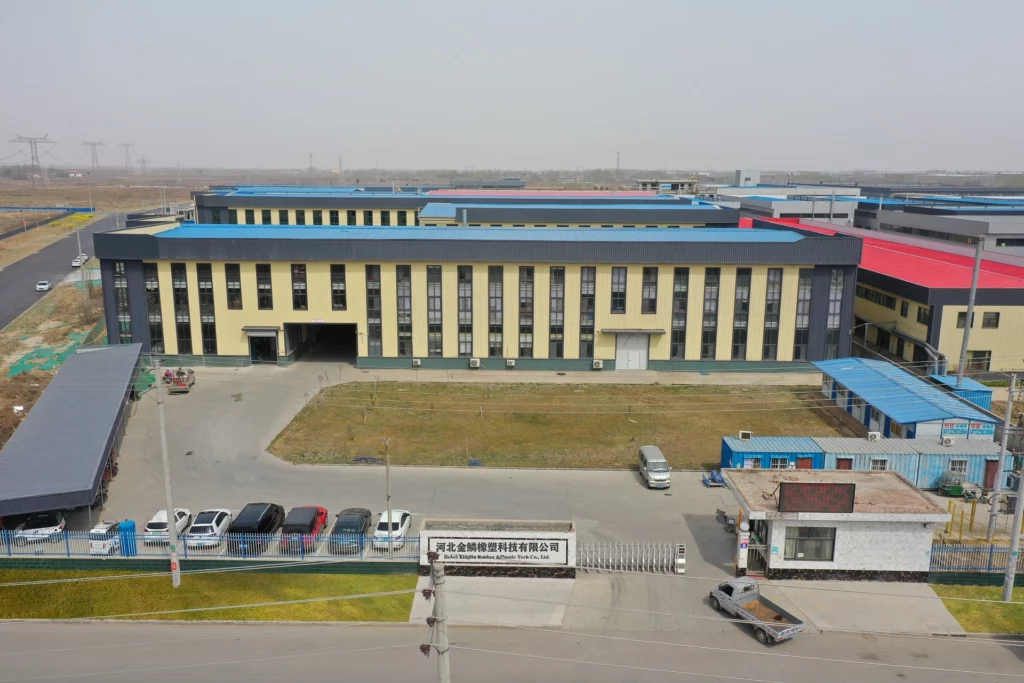

silicone hose factory

silicone hose factory

China blue silicone heater hose Product Specification

100% Virgin silicone materials
Standard: SAE J20 R3 Class A
Working Temperature: -60°C to 260 °C
Standard Color Option: Blue/Red/Black/Green/Yellow/Orange etc
Length: 10/20/30/50m as the customer’s requirement
UV and ozone resistant.

silicone heater hose Application

Silicone heater hoses use in cooling, in heating. they are very flexible with a good bend radius. This allows it to be used in continuous runs, across the full length of a bus or other long vehicle.

With fewer joints and clips, apart from the associated cost savings, the risk of leakage is greatly reduced.

Silicone hose application Silicone hose application Silicone heater hose application



Silicone Heater Hose Specification

S.NO P/N ID1 ID1 WALL PLY
mm Inch mm
1 SH8 8 5/16 3.5-4.5 1-2
2 SH10 10 3/8 3.5-4.5 1-2
3 SH12 12 1/2 3.5-4.5 1-2
4 SH14 14 9/16 3.5-4.5 1-2
5 SH16 16 5/8 3.5-4.5 1-2
6 SH19 19 3/4 3.5-4.5 1-2
7 SH22 22 7/8 3.5-4.5 1-2
8 SH25 25 1 3.5-4.5 1-2
9 SH28 28 1 1/8 3.5-4.5 1-2
10 SH32 32 1 1/4 3.5-4.5 1-2
more more more more more more
