45 학위 실리콘 팔꿈치 감속기 호스

Product Parameter

유연한, Stable, Reliable

Wall Thickness: 3mm, 4mm, 4.5mm, 5mm, 6mm, or as requested

크기 공차: ID<2″, ± 0.5mm; ID>2″, ± 1mm

색상: 파란색, 빨간색, 검은색, 등. (내부 안감은 다양한 색상을 채택할 수 있습니다.) Customizable

감속기 실리콘 호스 Describe

1. MATERIAL： 100% High-Grade Silicone Rubber

2, OPTION OF FABRIC: 폴리에스테르/아라미드(노멕스) / 유리 섬유

3. SURFACE/FINISH： 매끄러움 또는 천

4. 길이: 20mm-100mm or as requested

5. POLYESTER REINFORCED： 1-5 ply standard or as per Customer’s Requirement

6. LOGO: as request

7. PACKING DETAILS： As per Customer’s Packing Requirement

8 . SERVICE: OEM / ODM

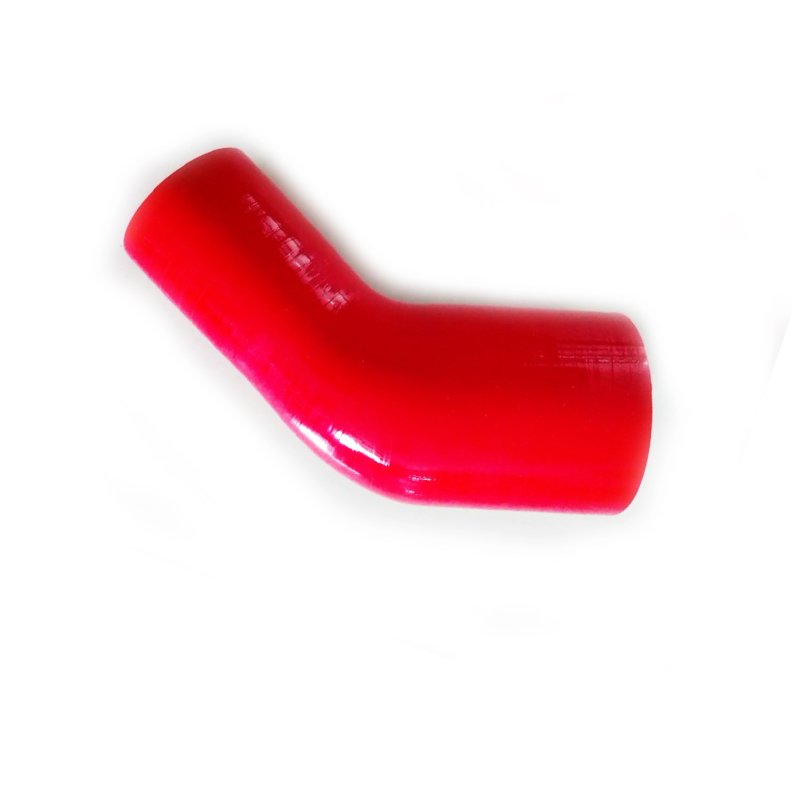

45 Degree Elbow Silicone Hoses are available in black, 파란색, and red. Other colors may be available.

Silicone hose lengths are made from plied silicone reinforced with polyester, making it extra strong. It is highly resistant to oxygen, 오존, 물, sunlight, and UV radiation and offers excellent compression resistance.

The hose has high electrical insulation qualities and is also very reliable working in extremely low and extremely high temperatures.

우리 제품에 관심이 있다면, 저에게 연락해주세요

Product Parameter

	S.NO	부품번호	ID1	ID2	ID1		ID2		길이	길이	벽	주름	W.P
			mm	mm	인치		인치		mm	인치	mm
1		R90-16-13/102P3	16	13		5/8		1/2	102X102	4	4	3	0.7Mpa (101사이)
2		R90-19-13/102P3	19	13		3/4		1/2	102X102	4	4	3	0.7Mpa (101사이)
3		R90-19-16/102P3	19	16		3/4		5/8	102X102	4	4	3	0.7Mpa (101사이)
4		R90-22-16/102P3	22	16		6/7		5/8	102X102	4	4	3	0.7Mpa (101사이)
5		R90-22-19/102P3	22	19		6/7		3/4	102X102	4	4	3	0.7Mpa (101사이)
6		R90-25-16/102P3	25	16		1		5/8	102X102	4	4	3	0.7Mpa (101사이)
7		R90-25-19/102P3	25	19		1		3/4	102X102	4	4	3	0.7Mpa (101사이)
8		R90-25-22/102P3	25	22		1		6/7	102X102	4	4	3	0.75Mpa(108사이)
9		R90-28-19/102P3	28	19	1	1/9		3/4	102X102	4	4	3	0.75Mpa(108사이)
10		R90-28-22/102P3	28	22	1	1/9		6/7	102X102	4	4	3	0.75Mpa(108사이)
11		R90-28-25/102P3	28	25	1	1/9		1	102X102	4	4	3	0.75Mpa(108사이)
12		R90-32-19/102P3	32	19	1	1/4		3/4	102X102	4	4	3	0.6Mpa (87사이)
13		R90-32-25/102P3	32	25	1	1/4		1	102X102	4	4	3	0.6Mpa (87사이)
14		R90-32-28/102P3	32	28	1	1/4	1	1/9	102X102	4	4	3	0.6Mpa (87사이)
15		R90-35-22/102P3	35	22	1	3/8		6/7	102X102	4	4	3	0.6Mpa (87사이)
16		R90-35-25/102P3	35	25	1	3/8		1	102X102	4	4	3	0.6Mpa (87사이)
17		R90-35-28/102P3	35	28	1	3/8	1	1/9	102X102	4	4	3	0.6Mpa (87사이)
1		R90-16-13/102P3	16	13		5/8		1/2	102X102	4	4	3	0.7Mpa (101사이)
2		R90-19-13/102P3	19	13		3/4		1/2	102X102	4	4	3	0.7Mpa (101사이)
3		R90-19-16/102P3	19	16		3/4		5/8	102X102	4	4	3	0.7Mpa (101사이)
4		R90-22-16/102P3	22	16		6/7		5/8	102X102	4	4	3	0.7Mpa (101사이)
5		R90-22-19/102P3	22	19		6/7		3/4	102X102	4	4	3	0.7Mpa (101사이)
6		R90-25-16/102P3	25	16		1		5/8	102X102	4	4	3	0.7Mpa (101사이)
7		R90-25-19/102P3	25	19		1		3/4	102X102	4	4	3	0.7Mpa (101사이)
8		R90-25-22/102P3	25	22		1		6/7	102X102	4	4	3	0.75Mpa(108사이)
9		R90-28-19/102P3	28	19	1	1/9		3/4	102X102	4	4	3	0.75Mpa(108사이)
10		R90-28-22/102P3	28	22	1	1/9		6/7	102X102	4	4	3	0.75Mpa(108사이)
11		R90-28-25/102P3	28	25	1	1/9		1	102X102	4	4	3	0.75Mpa(108사이)
12		R90-32-19/102P3	32	19	1	1/4		3/4	102X102	4	4	3	0.6Mpa (87사이)
13		R90-32-25/102P3	32	25	1	1/4		1	102X102	4	4	3	0.6Mpa (87사이)
14		R90-32-28/102P3	32	28	1	1/4	1	1/9	102X102	4	4	3	0.6Mpa (87사이)
15		R90-35-22/102P3	35	22	1	3/8		6/7	102X102	4	4	3	0.6Mpa (87사이)
16		R90-35-25/102P3	35	25	1	3/8		1	102X102	4	4	3	0.6Mpa (87사이)
29		R90-48-30/102P4	48	30	1	8/9	1	1/6	102X102	4	5	4	0.5Mpa (72사이)
30		R90-51-38/102P4	51	38		2	1	1/2	102X102	4	5	4	0.5Mpa (72사이)
31		R90-51-45/102P4	51	45		2	1	7/9	102X102	4	5	4	0.5Mpa (72사이)
32		R90-54-45/102P4	54	45	2	1/8	1	7/9	102X102	4	5	4	0.44Mpa (64사이)
33		R90-54-48/102P4	54	48	2	1/8	1	8/9	102X102	4	5	4	0.44Mpa (64사이)
34		R90-54-51/102P4	54	51	2	1/8		2	102X102	4	5	4	0.4Mpa (57사이)
35		R90-57-45/102P4	57	45	2	1/4	1	7/9	102X102	4	5	4	0.4Mpa (57사이)
	36	R90-57-51/102P4	57	51	2	1/4		2	102X102	4	5	4	0.4Mpa (57사이)
37		R90-60-51/125P4	60	51	2	1/3		2	125X125	5	5	4	0.4Mpa (57사이)
38		R90-60-55/125P4	60	55	2	1/3	2	1/6	125X125	5	5	4	0.4Mpa (57사이)
39		R90-63-51/125P4	63	51	2	1/2		2	125X125	5	5	4	0.4Mpa (57사이)
40		R90-63-57/125P4	63	57	2	1/2	2	1/4	125X125	5	5	4	0.4Mpa (57사이)
41		R90-63-60/125P4	63	60	2	1/2	2	1/3	125X125	5	5	4	0.4Mpa (57사이)
42		R90-70-51/125P4	70	51	2	3/4		2	125X125	5	5	4	0.4Mpa (57사이)
43		R90-70-57/125P4	70	57	2	3/4	2	1/4	125X125	5	5	4	0.4Mpa (57사이)
44		R90-70-60/125P4	70	60	2	3/4	2	1/3	125X125	5	5	4	0.4Mpa (57사이)
45		R90-70-63/125P4	70	63	2	3/4	2	1/2	125X125	5	5	4	0.4Mpa (57사이)
46		R90-76-51/125P4	76	51		3		2	125X125	5	5	4	0.4Mpa (57사이)
47		R90-76-60/125P4	76	60		3	2	1/3	125X125	5	5	4	0.4Mpa (57사이)
48		R90-76-63/125P4	76	63		3	2	1/2	125X125	5	5	4	0.4Mpa (57사이)
49		R90-76-70/125P4	76	70		3	2	3/4	125X125	5	5	4	0.4Mpa (57사이)
50		R90-80-60/125P4	80	60	3	1/7	2	1/3	125X125	5	5	4	0.4Mpa (57사이)
51		R90-80-70/125P4	80	70	3	1/7	2	3/4	125X125	5	5	4	0.3Mpa (43사이)
52		R90-89-51/125P5	89	51	3	1/2		2	125X125	5	6	5	0.33Mpa (48사이)
53		R90-89-76/125P5	89	76	3	1/2		3	125X125	5	6	5	0.33Mpa (48사이)
54		R90-90-70/125P5	90	70	3	1/2	2	3/4	125X125	5	6	5	0.33Mpa (48사이)
55		R90-90-80/125P5	90	80	3	1/2	3	1/7	125X125	5	6	5	0.33Mpa (48사이)
56		R90-102-70/145P5	102	70		4	2	3/4	145X145	5 5/7	6	5	0.33Mpa (48사이)
57		R90-102-76/145P5	102	76		4		3	145X145	5 5/7	6	5	0.33Mpa (48사이)
58		R90-102-89/145P5	102	89		4	3	1/2	145X145	5 5/7	6	5	0.33Mpa (48사이)
59		R90-127-102/172P5	127	102		5		4	172X172	6 7/9	6	5	0.25Mpa (35사이)
